Plaats van herkomst: | China |
---|---|
Merknaam: | KAD |
Certificering: | CE |
Modelnummer: | CDDW |
Min. bestelaantal: | 1 eenheid |
Prijs: | To be negotiated |
Verpakking Details: | ijzeren pallet + kunststoffolie |
Levertijd: | 7 werkdagen |
Betalingscondities: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
Levering vermogen: | 50 eenheden/maand |
Productnaam: | elektrische walkiestapelaar | Laadvermogen: | andere: |
---|---|---|---|
Lifthoogte: | 1600/200012500/3000 | Lange: | 1770 |
Wdith: | 850 | Battery Capacity: | 2*7012*80 |
Batterijspanning: | DC24V | Kracht: | 0,75 |
Markeren: | 1 ton elektrische palletstapel,1000kg elektrische Palletstapelaar,3 meter elektrische palletstapel |

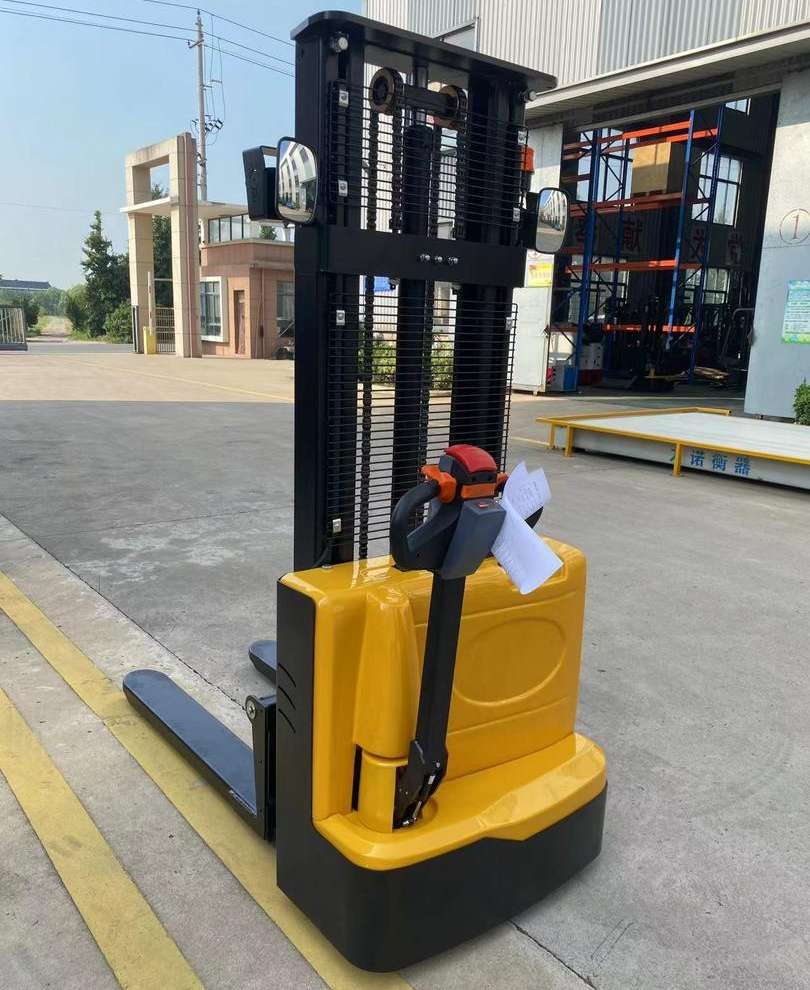

1 Ton 3 Meter 1000kg 3 M Electric Pallet Walkie Stacker Electric Pedestrian Stacker
Product Description
Pedestrian electric stacker cranes are redefining material handling in environments where space is precious and flexibility is crucial. These stacker cranes are designed to improve efficiency and usability, with unique advantages that make them stand out in the fields of warehouse management and logistics.
Walk-behind electric stackers provide a tailored solution for handling goods in specialized and space-constrained environments. Their unique blend of ergonomic design, precision maneuverability, and operational flexibility make them an invaluable tool for modern logistics and warehouse operations.
MODEL
|
|
|
CDDW12 CDDW16
|
|
Features
|
Drive system
|
|
|
Battery
|
Driving mode
|
|
|
Walkie
|
|
Load Capacity
|
Q
|
KG
|
1200/1600
|
|
Load Center
|
|
MM
|
500
|
|
Weight
|
Weight(With battery)
|
CDDW12
|
KG
|
470/485/505/520
|
CDDW16
|
495/510/532/553
|
|||
Wheels
|
Material
|
|
|
PU
|
Size
|
Lifting Height
|
H3
|
MM
|
1600/2000/2500/3000
|
Lowest Mast
|
H1
|
MM
|
2080/1580/1830/2080
|
|
Max.Height when operating
|
H4
|
MM
|
2080/2730/3230/3730
|
|
Min.Height of Fork
|
H13
|
MM
|
≤90
|
|
Length
|
L
|
MM
|
1770
|
|
Width
|
B
|
MM
|
850
|
|
Fork Length
|
L1
|
MM
|
1070
|
|
Wheelbase
|
Y
|
MM
|
1250
|
|
Fork Outside Width
|
B1
|
MM
|
680
|
|
Fork Inside Width
|
B2
|
MM
|
305
|
|
Min.Turning Radius
|
WA
|
MM
|
1390
|
|
parameter
|
Driving Speed(Empty/Full Load)
|
|
MM/S
|
5.0/5.0
|
Lifting Speed(Empty/Full Load)
|
|
MM/S
|
140/135
|
|
Descending Speed(Empty/Full Load)
|
|
MM/S
|
150/155
|
|
Max.Gradient(Empty/Full Load)
|
|
%
|
7/5
|
|
Brake
|
|
|
Electromagnetic
|
|
Motor
|
Driving Motor
|
|
KW
|
DC/0.75
|
Lifting Motor
|
|
KW
|
DC/2.2
|
|
Battery
|
Capacity
|
|
V/Ah
|
24*70/24*80Ah
|
Others
|
Noise level DIN 12053
|
|
DB
|
<70
|
