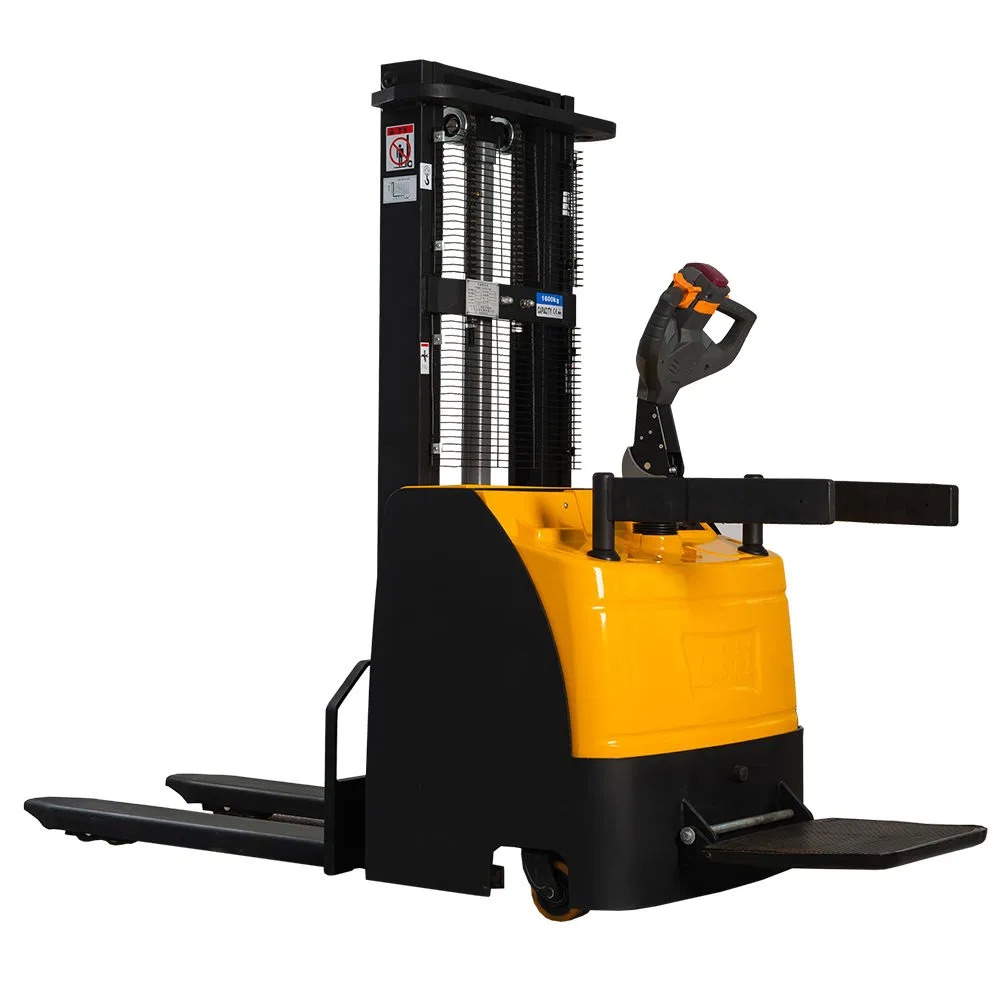

Electric Pallet Stacker with 1070mm Fork Length 850mm Fork Width and 1738/2099mm Turning Radius

Electric Pallet Stacker with 1070mm Fork Length 850mm Fork Width and 1738/2099mm Turning Radius
Electric Pallet Stacker with 1070mm Fork Length 850mm Fork Width and 1738/2099mm Turning Radius Electric Pallet Stacker with 1070mm Fork Length 850mm Fork Width and 1738/2099mm Turning Radius Electric Pallet Stacker with 1070mm Fork Length 850mm Fork Width and 1738/2099mm Turning Radius Electric Pallet Stacker with 1070mm Fork Length 850mm Fork Width and 1738/2099mm Turning Radius Electric Pallet Stacker with 1070mm Fork Length 850mm Fork Width and 1738/2099mm Turning Radius Electric Pallet Stacker with 1070mm Fork Length 850mm Fork Width and 1738/2099mm Turning Radius Electric Pallet Stacker with 1070mm Fork Length 850mm Fork Width and 1738/2099mm Turning Radius Electric Pallet Stacker with 1070mm Fork Length 850mm Fork Width and 1738/2099mm Turning Radius Electric Pallet Stacker with 1070mm Fork Length 850mm Fork Width and 1738/2099mm Turning Radius
Basisinformatie
Min. bestelaantal: 1
Prijs: 3045
Beste prijs Contact nu
Laadvermogen: 1500 kg Hefthoogte: 3500 mm
Laadcentrum: 500 mm Vorkbreedte: 850 mm
Vorklengte: 1070 mm Draairadius: 1738/2099 mm
Batterijcapaciteit: 24v/210Ah Rijmotor: 1,2 kW
Tilmotor: 2,2 kW drijfsnelheid: 4km/h
Bandentype: Polyurethaan Totale maat: 2170*1570*2100mm
Gewicht: 900 kg Grondklaring: 30 mm
Gradiënt: 3°/5°
Markeren:

1070mm Fork Length Electric Pallet Stacker

,

850mm Fork Width Electric Forklift

,

1738/2099mm Turning Radius Pallet Stacker

Good Sale 1500kg 3500mm Electric Pallet Stacker Balance Stacker Forklift
Electric Pallet Stacker with 1070mm Fork Length 850mm Fork Width and 1738/2099mm Turning Radius 0
Full electric stackers are designed for loading, stacking, and short-distance palletizing of goods. Featuring a simple structure and flexible operation, they offer excellent micro-operability and high safety performance. Ideal for operations in narrow passages and confined spaces, these stackers can efficiently work in ship cabins, carriages, and containers for loading, unloading, and handling of palletized goods.
Product Specifications
Model CDD1030 CDD1530
Load Capacity 1000 kg 1500 kg
Lifting Height 3000 mm 3000 mm
Load Center 500 mm 500 mm
Fork Size 1220×100×40 mm 1220×100×40 mm
Ground Clearance 30 mm 30 mm
Pedal Length 410 mm 410 mm
Handler Height 1490 mm 1490 mm
Outer Distance Between Forks 685 mm 685 mm
Inner Distance Between Forks 345 mm 345 mm
Tyre type Polyurethane Polyurethane
Control Way Handler Handler
Speed Regulation Way Stepless Speed Regulation Stepless Speed Regulation
The Min. Turning Radius 1500 mm 1500 mm
Driving Speed with Full Loads 4 km/h 4 km/h
Gradient 3°/5° 3°/5°
Battery 24V/210A 24V/210A
Driving Motor 1.2 KW 1.2 KW
Lifting Motor 2.2 KW 2.2 KW
Tyre Size 300/250 mm 300/250 mm
Overall Size 2170×1570×2100 mm 2170×1570×2100 mm
Weight 900 kg 900 kg
Reference Working Time 6 h 6 h
Increased height each tonnage 1600/2000/2500/3000/3500 mm 1600/2000/2500/3000/3500 mm
Max height 2100/1600/1850/2100/2350 mm 2100/1600/1850/2100/2350 mm

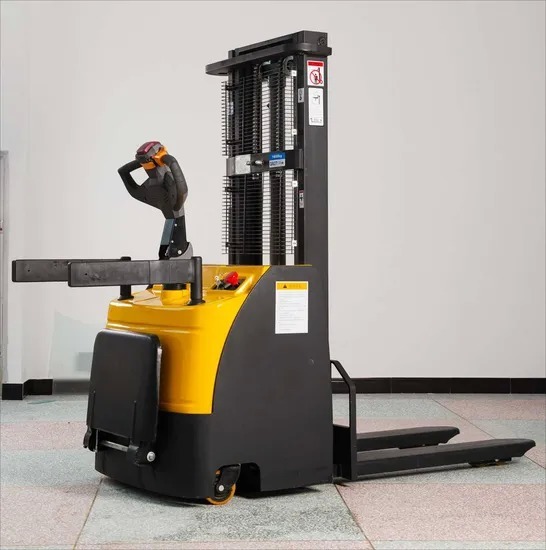

Product Gallery
Electric Pallet Stacker with 1070mm Fork Length 850mm Fork Width and 1738/2099mm Turning Radius 1
Key Components
Control Handle
Brand: KAD
Domestic premium control handle with functional buttons for sensitive control of UP/DOWN and FORWARD/BACKWARD movements.
Electric Pallet Stacker with 1070mm Fork Length 850mm Fork Width and 1738/2099mm Turning Radius 2 Electric Pallet Stacker with 1070mm Fork Length 850mm Fork Width and 1738/2099mm Turning Radius 3
Operation Panel
Features battery indicator, emergency switch, and functional keys. The ergonomic design combines functionality with aesthetic appeal for comfortable operation.
Mast System
Robust cylinder and chain mechanism ensures smooth fork operation. Available in 1-stage, 2-stage, or 3-stage mast configurations.
Electric Pallet Stacker with 1070mm Fork Length 850mm Fork Width and 1738/2099mm Turning Radius 4 Electric Pallet Stacker with 1070mm Fork Length 850mm Fork Width and 1738/2099mm Turning Radius 5
Key Features
  • Side-positioned drive system for enhanced stability
  • Heavy-duty casters for superior maneuverability
  • Stepless speed regulation for precise control
  • Polyurethane tires for durability and smooth operation
  • Compact design for operation in confined spaces
  • Multiple mast height options available
Frequently Asked Questions
Q1. What is your terms of packing?
A: Generally, we pack our goods in paper package and Iron pallet. We can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. Or As negotiated.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 5 to 30 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q6: How do you make our business long-term and good relationship?
A:
  1. We keep good quality and competitive price to ensure our customers benefit
  2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
