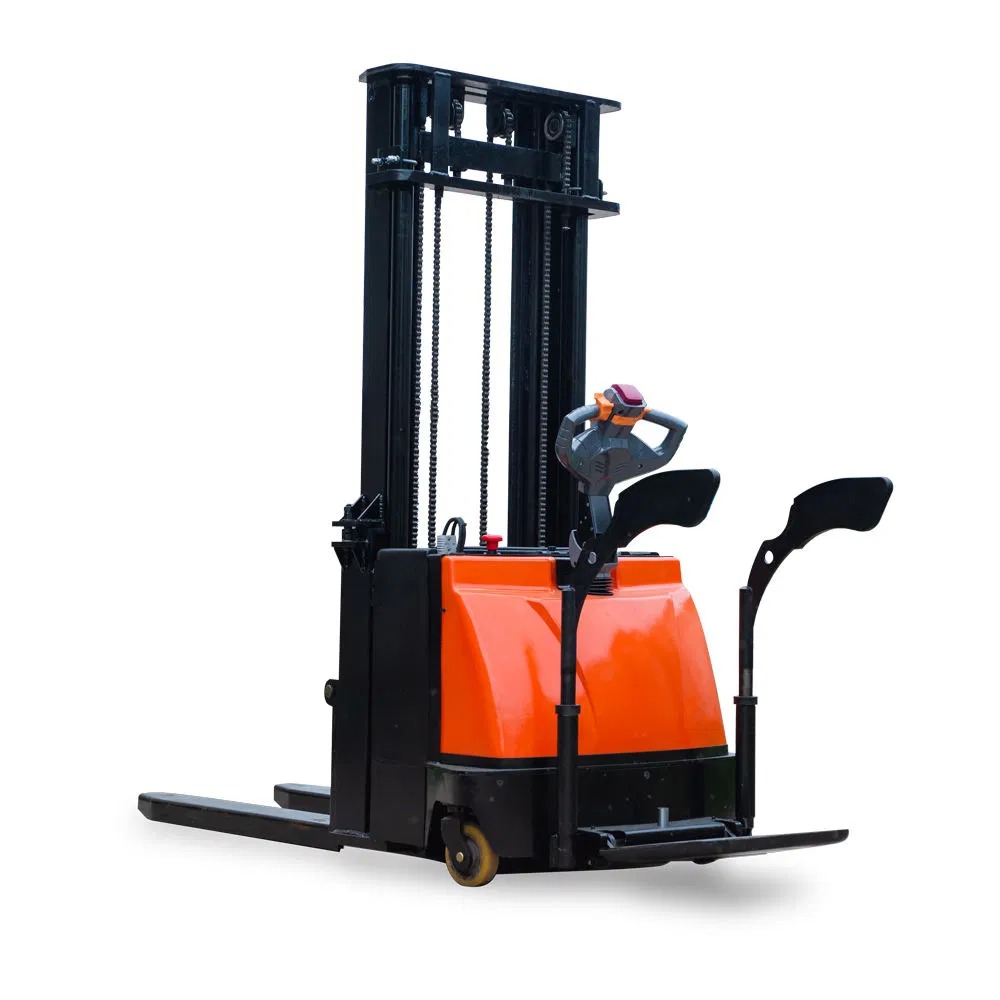

Electric Pallet Stacker with 500mm Load Center 1070mm Fork Length and 1738/2099mm Turning Radius

Electric Pallet Stacker with 500mm Load Center 1070mm Fork Length and 1738/2099mm Turning Radius
Electric Pallet Stacker with 500mm Load Center 1070mm Fork Length and 1738/2099mm Turning Radius Electric Pallet Stacker with 500mm Load Center 1070mm Fork Length and 1738/2099mm Turning Radius Electric Pallet Stacker with 500mm Load Center 1070mm Fork Length and 1738/2099mm Turning Radius Electric Pallet Stacker with 500mm Load Center 1070mm Fork Length and 1738/2099mm Turning Radius Electric Pallet Stacker with 500mm Load Center 1070mm Fork Length and 1738/2099mm Turning Radius Electric Pallet Stacker with 500mm Load Center 1070mm Fork Length and 1738/2099mm Turning Radius Electric Pallet Stacker with 500mm Load Center 1070mm Fork Length and 1738/2099mm Turning Radius Electric Pallet Stacker with 500mm Load Center 1070mm Fork Length and 1738/2099mm Turning Radius Electric Pallet Stacker with 500mm Load Center 1070mm Fork Length and 1738/2099mm Turning Radius
Basisinformatie
Min. bestelaantal: 1
Prijs: 3145
Beste prijs Contact nu
Model nr.: CDD2035 Laadvermogen: 1-2T
Laadcentrum: 500 mm Hefthoogte: 3500 mm
Batterijcapaciteit: 24v/210Ah Bandentype: Pu-Wiel
Vorkbreedte: 550/680 mm Draairadius: 1738/2099 mm
Vorklengte: 1070 mm drijfsnelheid: 4 km/u
Gradiënt: 3°/5° Rijmotor: 1,2 kW
Tilmotor: 2,2 kW Totale maat: 2170*1570*2100mm
Gewicht: 960.000 kg
Markeren:

500mm Load Center Electric Pallet Stacker

,

1070mm Fork Length Electric Forklift

,

1738/2099mm Turning Radius Pallet Stacker

Reasonable Price 2t 3.5m Electric Pallet Stacker with CE Certification
Electric Pallet Stacker with 500mm Load Center 1070mm Fork Length and 1738/2099mm Turning Radius 0
Full electric stackers are designed for loading, stacking, and short-distance palletizing of goods. Featuring a simple structure and flexible operation, they offer excellent micro-operability and high safety performance. Ideal for operations in narrow passages and limited spaces, these stackers can efficiently work in ship cabins, carriages, and containers for palletized goods handling.
Product Specifications
Model CDD1030 CDD1530
Load Capacity 1000 kg 1500 kg
Lifting Height 3000 mm 3000 mm
Load Center 500 mm 500 mm
Fork Size 1220×100×40 mm 1220×100×40 mm
Ground Clearance 30 mm 30 mm
Pedal Length 410 mm 410 mm
Handler Height 1490 mm 1490 mm
Outer Distance Between Forks 685 mm 685 mm
Inner Distance Between Forks 345 mm 345 mm
Tyre type Polyurethane Polyurethane
Control Way Handler Handler
Speed Regulation Way Stepless Speed Regulation Stepless Speed Regulation
The Min. Turning Radius 1500 mm 1500 mm
Driving Speed with Full Loads 4 km/h 4 km/h
Gradient 3°/5° 3°/5°
Battery 24V/210A 24V/210A
Driving Motor 1.2 KW 1.2 KW
Lifting Motor 2.2 KW 2.2 KW
Tyre Size 300/250 mm 300/250 mm
Overall Size 2170×1570×2100 mm 2170×1570×2100 mm
Weight 900 kg 900 kg
Reference Working Time 6 h 6 h
Increased height each tonnage 1600/2000/2500/3000/3500 mm 1600/2000/2500/3000/3500 mm
Max height 2100/1600/1850/2100/2350 mm 2100/1600/1850/2100/2350 mm
Product Images

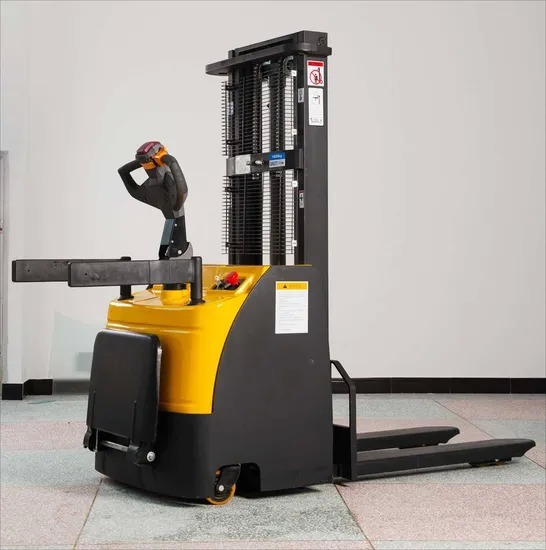

Electric Pallet Stacker with 500mm Load Center 1070mm Fork Length and 1738/2099mm Turning Radius 1
Key Components
Control Handle
Brand: KAD - Domestic famous control handle with functional buttons that can control UP/DOWN, FORWARD/BACKWARD movements sensitively.
Electric Pallet Stacker with 500mm Load Center 1070mm Fork Length and 1738/2099mm Turning Radius 2
Operation Panel
Combined with the key, battery indicator, and emergency switch. The functional panel features an ergonomic design for comfortable operation.
Electric Pallet Stacker with 500mm Load Center 1070mm Fork Length and 1738/2099mm Turning Radius 3

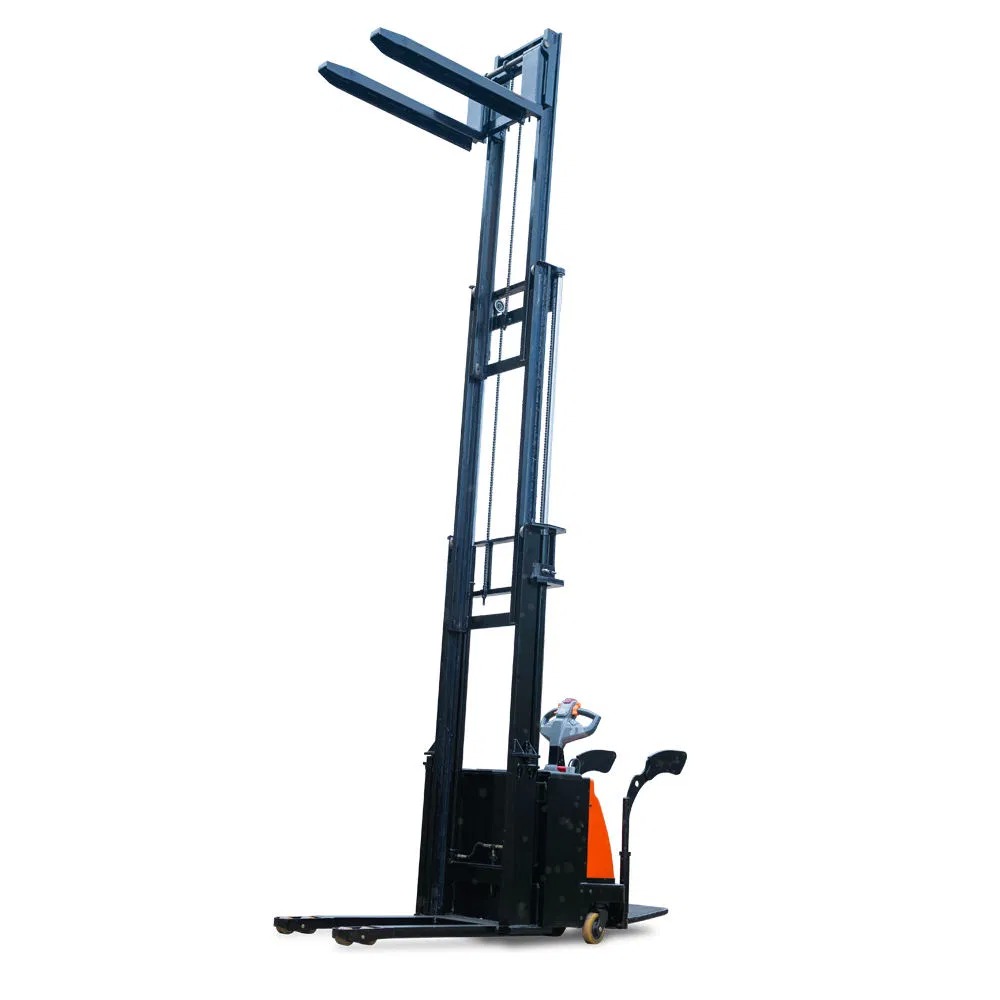

Mast System
Strong cylinder and chain ensure smooth fork operation. Available in 1-stage, 2-stage, or 3-stage mast configurations.
Electric Pallet Stacker with 500mm Load Center 1070mm Fork Length and 1738/2099mm Turning Radius 4
Main Features
  • Side-positioned drive system for enhanced stability
  • Robust caster wheels for easy maneuverability
  • CE certified for safety compliance
  • Energy-efficient electric operation
  • Compact design for working in confined spaces
  • Stepless speed regulation for precise control
Frequently Asked Questions
Q1. What is your terms of packing?
A: Generally, we pack our goods in paper package and Iron pallet. We can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. Or as negotiated.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 5 to 30 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q6: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
