Plaats van herkomst: | CHINA |
---|---|
Merknaam: | KAD |
Certificering: | CE |
Min. bestelaantal: | 1 |
Prijs: | 1299-1500 |
Verpakking Details: | ijzeren pallet + kunststoffolie |
Levertijd: | 7Work -dagen |
Betalingscondities: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Levering vermogen: | 50 eenheden/maand |
Markeren: | electric vacuum suction cups lifter,glass installation robot lifter,800kg electric pallet stacker |
---|

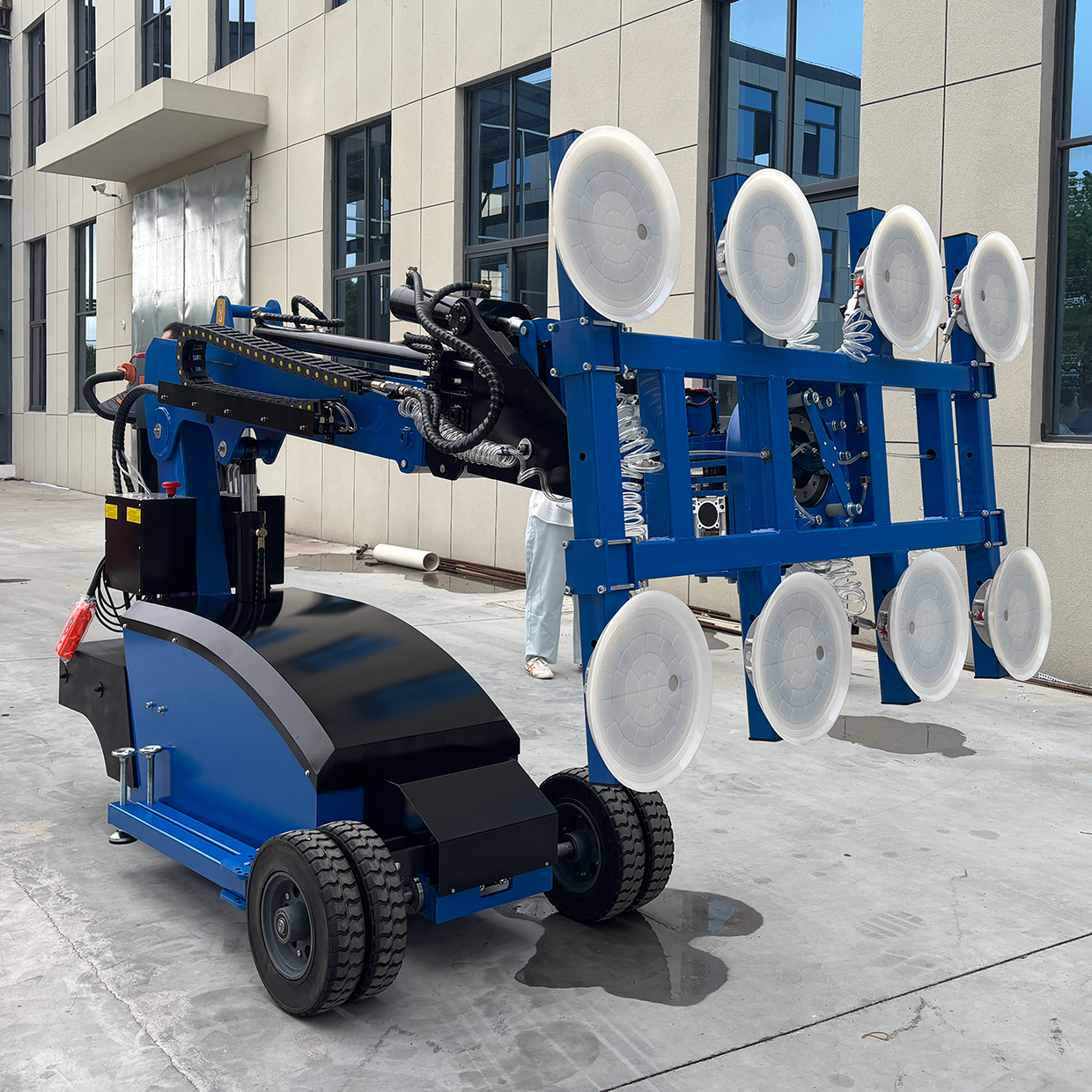

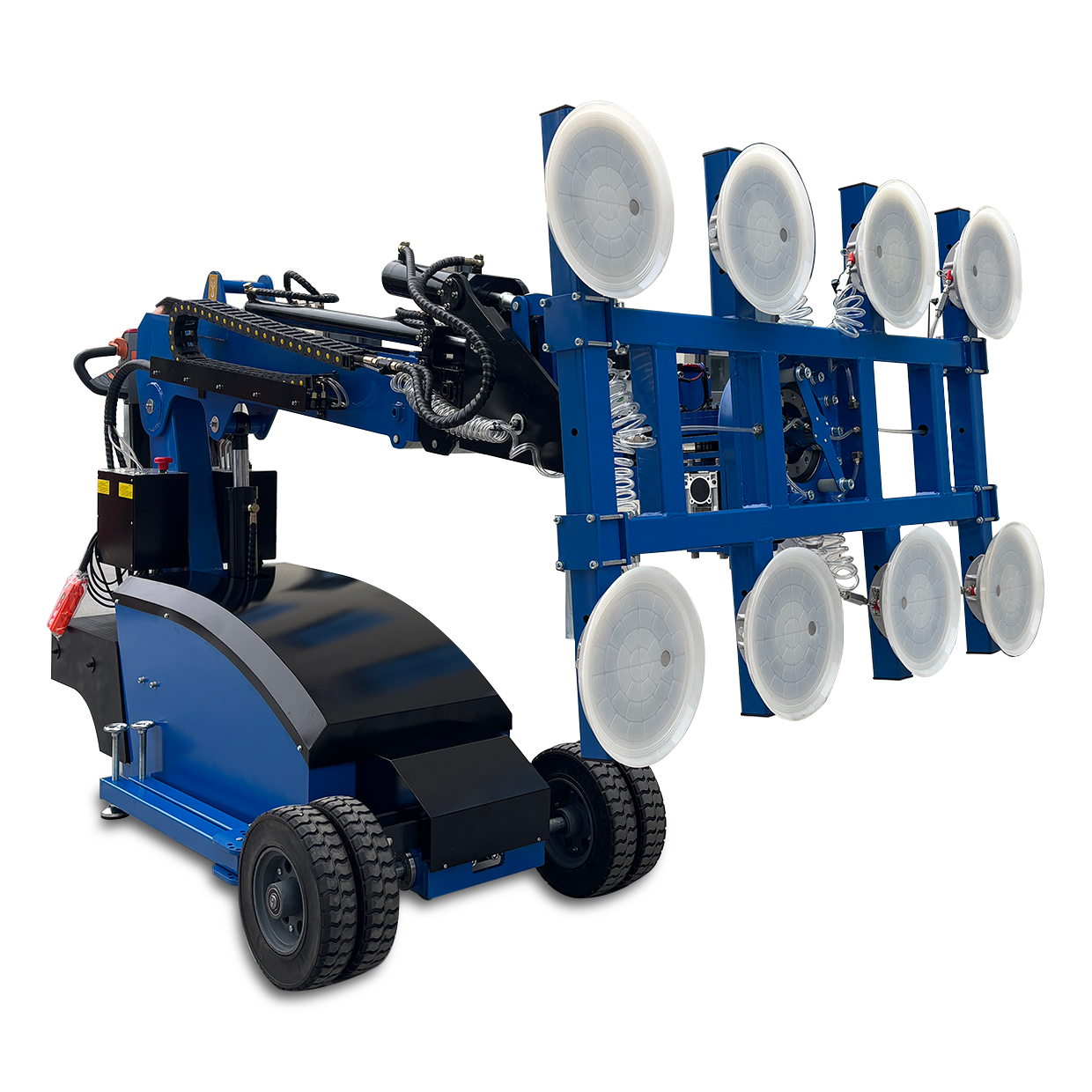

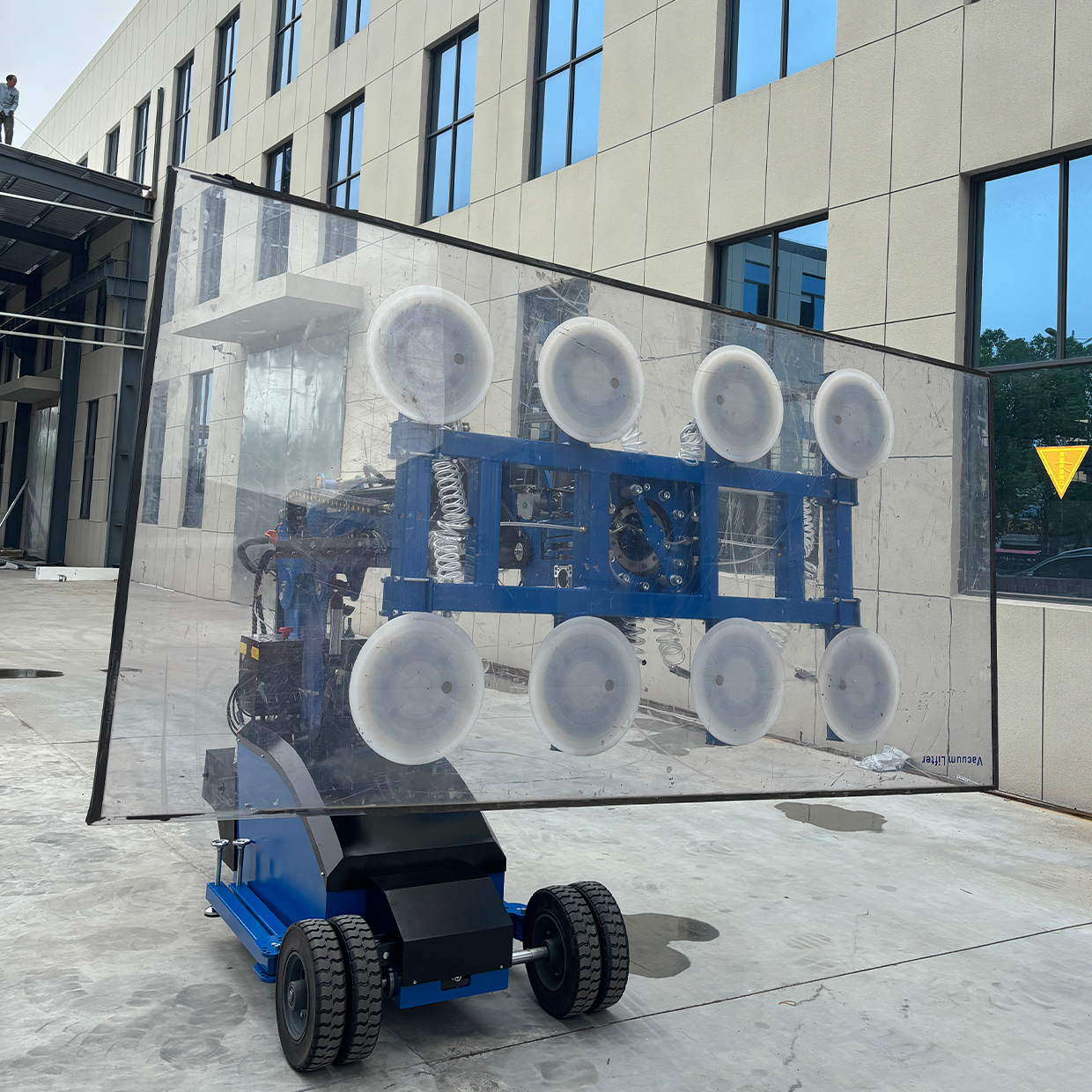

Our robotic glass lifter is designed to make heavy material handling simpler, safer, and more efficient. It is widely used for transporting and installing glass sheets, metal panels, wooden boards, stone slabs, and similar materials in construction and industrial projects. With advanced safety features such as a vacuum alarm, automatic braking, emergency stop button, charging protection, counterweights, and adjustable support legs, it ensures secure and stable operation. Also referred to as a vacuum glass lifter robot, glass handling machine, glazing robot, or electric suction lifter, it is a versatile solution for modern lifting needs.
Click here to get latest price
If you have any questions for this Semi electric heavy-duty circular clamp ,please contact me as below,i will stand by 24 hours.Thanks
Model
|
/
|
GL600/800
|
Driving mode
|
/
|
Front Axle Drive
|
Max.Load
|
kg
|
600 /800
|

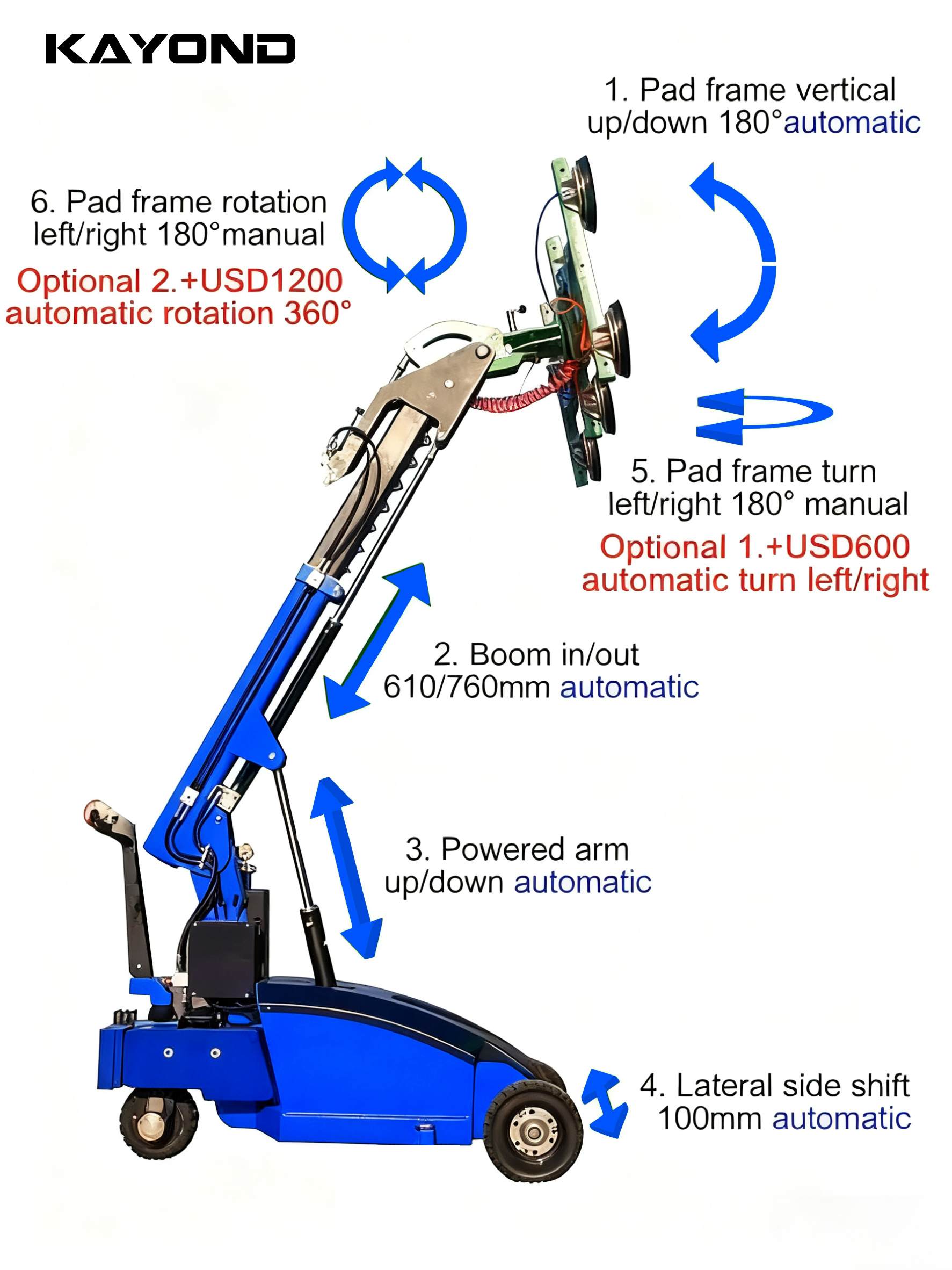

Rotating
|
°
|
Manual 360° (Automatic type for optional)
|
Turn to side
|
°
|
Manual 90° (Automatic type for optional)
|
Lifting Height
|
mm
|
3700 /4500/ 5000
|
Manipulation
|
/
|
Walkie Type
|
Power
|
/
|
Tractive-type Free Maintence Battery
|
Controling type
|
/
|
Stepless adjusting speed
|
Battery
|
V/Ah
|
2*12/120
|
Charger
|
V/A
|
24/18
|
Climbing gradient
|
%
|
15
|
Braking type
|
/
|
Electromagnetic braking
|
Driving Motor
|
V/W
|
24/2200 / 24/2500
|
Lifting Motor
|
V/W
|
24/2200
|
Packing Size
|
mm
|
2780*990*1750 / 3180*1100*1780
|
Packing Weight
|
kg
|
1850 / 2080
|
Front Wheel Size
|
mm
|
Φ466*195 (Pneumatic Tires)
|
Front Wheel Qty
|
pcs
|
2 ( 2+2 Dual wheel optional)
|
Rear Wheel Size
|
mm
|
Solid Φ400*100 ( Pneumatic tires for optional)
|
Rear Wheel Qty
|
pcs
|
2
|
Pads Size
|
mm
|
Φ300
|
Pads Qty
|
pcs
|
6/8
|
